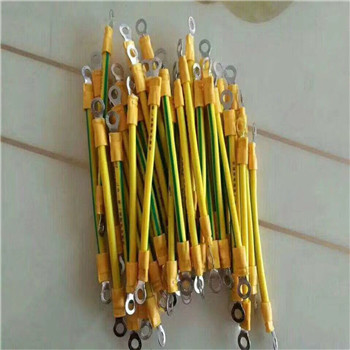

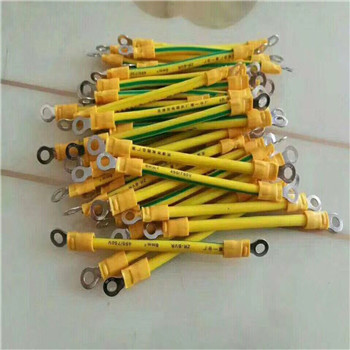

2.5mm2,4mm2,6mm2,yellow/green solar ground cable with lugs M5 or M6 on both sides
2.5mm2,4mm2,6mm2,yellow/green solar ground cable with lugs M5 or M6 on both sides
Product Features:
1. High quality pure copper conductor.
2. Low Resistance, Stable Conductivity and Strong Current Load.
3. PVC environmental insulated material.
4. Good flame retardant performance, safe and stable use.
5. Excellent terminals with stable connection and wear-resistant.
6. Factory direct sales, OEM is welcomed.
7. The bigger quantity, the bigger discount.
2.5mm2,4mm2,6mm2,yellow/green solar ground cable with lugs M5 or M6 on both sides
| Product Name | Photovoltaic Panel Grounding Wire With lugs |
| Product Conductor | Flexible Stranded Copper Conductor |
| Rated Voltage | 450/750V |
| Product Standard | IEC60227 |
| Insulation Material | PVC Insulation |
| Product Color | Yellow & Green |
| Product Length | 8CM/10CM/12CM/15CM/20CM/30CM (Can be customized) |
| Cross Section | 2.5MM2/4.0MM2/6.0MM2 (Can be customized) |
| Terminal Aperture Spacing | 4mm/5mm/6mm/8mm...(Can be Customized) |
| Temperature Rating | “-15degree to +70degree F14 |
| Product Application | Photovoltaic Solar Panels, Home Distribution Box, Project Engineering, Urban Power Grid, Bridge Earthing,Flange Grounding. |
2.5mm2,4mm2,6mm2,yellow/green solar ground cable with lugs M5 or M6 on both sides
| Nominal | Number/diameter | Insulation | Maximum outer | Reference | Conductor |
| section | of core | thickness | diameter | Weight | resistance at |
| (mm2) | (mm) | (mm) | (mm) | (km/kg) | 20°C≤ |
| (Ω/km) | |||||
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
| 10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
| 16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
| 25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
| 35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
